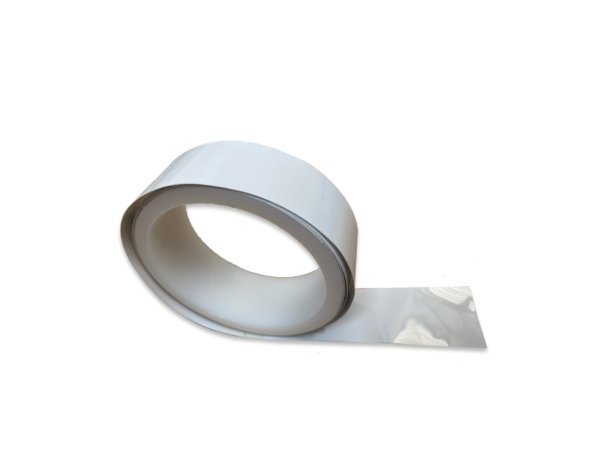

GCSR-020PFG-0.2(B)

GCSR-020PFG-0.2(B) is a fibreglass-reinforced, thermally conductive insulating pad designed for efficient heat transfer and electrical insulation. With a thermal conductivity of 2.0 W/m K and a breakdown voltage over 10 kV/mm, it manages both thermal and electrical challenges in modern electronics.

The pad features a fibreglass substrate on one side, which reduces tack for easier handling and installation. This makes it simple to position, especially during high-volume assembly. The reinforcement also improves its mechanical strength, resisting tearing, stretching, and shearing under pressure.

GCSR-020PFG-0.2(B) is soft, compliant, and conforms well to uneven surfaces. Despite its 0.2 mm thin profile, it maintains good thermal contact and insulation. It performs reliably in temperatures ranging from -40°C to +200°C, making it ideal for a wide range of environments.

The pad’s strong dielectric properties (volume resistivity of 6×10¹¹ Ω·cm and a dielectric constant of 5.8 @1MHz) make it safe for applications that require electrical isolation. It’s UL 94 V-0 flame-rated, adding fire safety to its feature set. It also has minimal weight loss (≤0.5%) after 240 hours at 150°C, ensuring long-term stability.

Common uses include LED lighting, consumer electronics, automotive systems, and communication devices. The pad helps transfer heat while protecting components from electrical shorts and mechanical damage.

Available in multiple roll sizes, including 0.3 m × 1 m, 10 m, and 25 m lengths, it offers flexibility for various applications.

In summary, GCSR-020PFG-0.2(B) delivers strong heat conduction, electrical insulation, and easy handling. Its fibreglass reinforcement improves durability and simplifies installation. Use it in compact devices where both thermal performance and electrical safety are essential.
