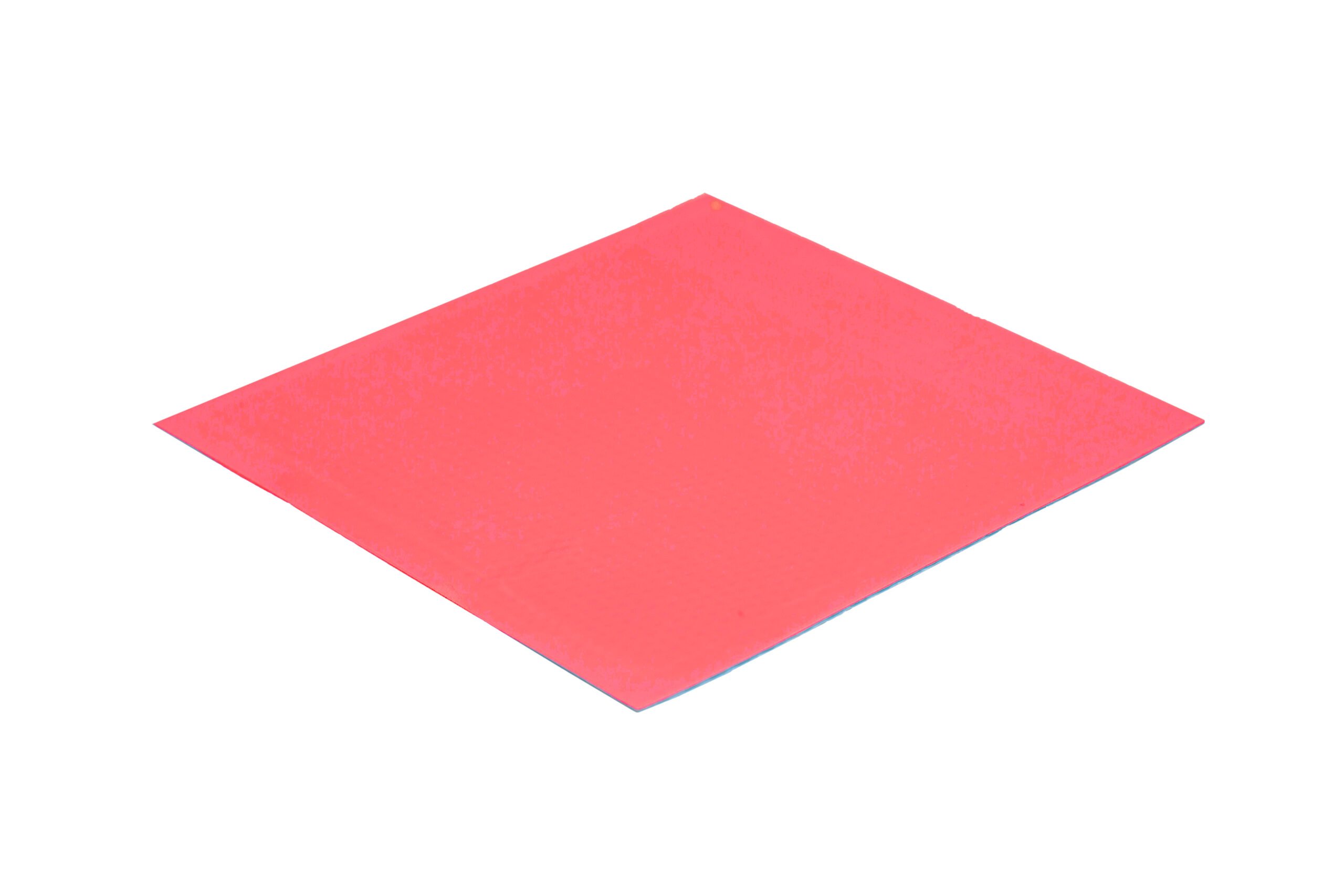

GCS-060-S

GCS Thermal Limited introduces the GCS-060-S, a high-performance silicone thermal interface pad designed to manage heat in electronic and industrial systems. It delivers excellent thermal conductivity of 6 W/m K, helping to keep components cool and operating efficiently.

This pad is super soft and highly compressible, making it ideal for uneven surfaces. It ensures good surface contact and minimal mechanical stress. The material also has a natural tack, making it easy to handle and apply without the need for adhesives. It provides strong electrical insulation, making it suitable for applications where both thermal and electrical performance matter. It also offers low oil bleed, ensuring long-term stability.

GCS-060-S is available in five thicknesses: 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, and 3.0 mm. Its dark red color makes it easy to identify. The material has a hardness of 50 Shore 00 and a density of 3.0 g/cm³. It can handle a wide temperature range from -50°C to +200°C, making it reliable for both high-heat and low-temperature environments. The dielectric breakdown is rated at >10 kV/mm, offering strong electrical protection. Its tensile strength is 0.1 MPa, and it features 60% elongation, giving it some flexibility without tearing.

Whether used in processors, power supplies, or LED lighting, GCS-060-S offers consistent thermal performance, structural compliance, and durability. It is a smart solution for modern devices that demand effective heat control.
